Steam Hood Quick Release Group/General Purpose # H7208

Product description:

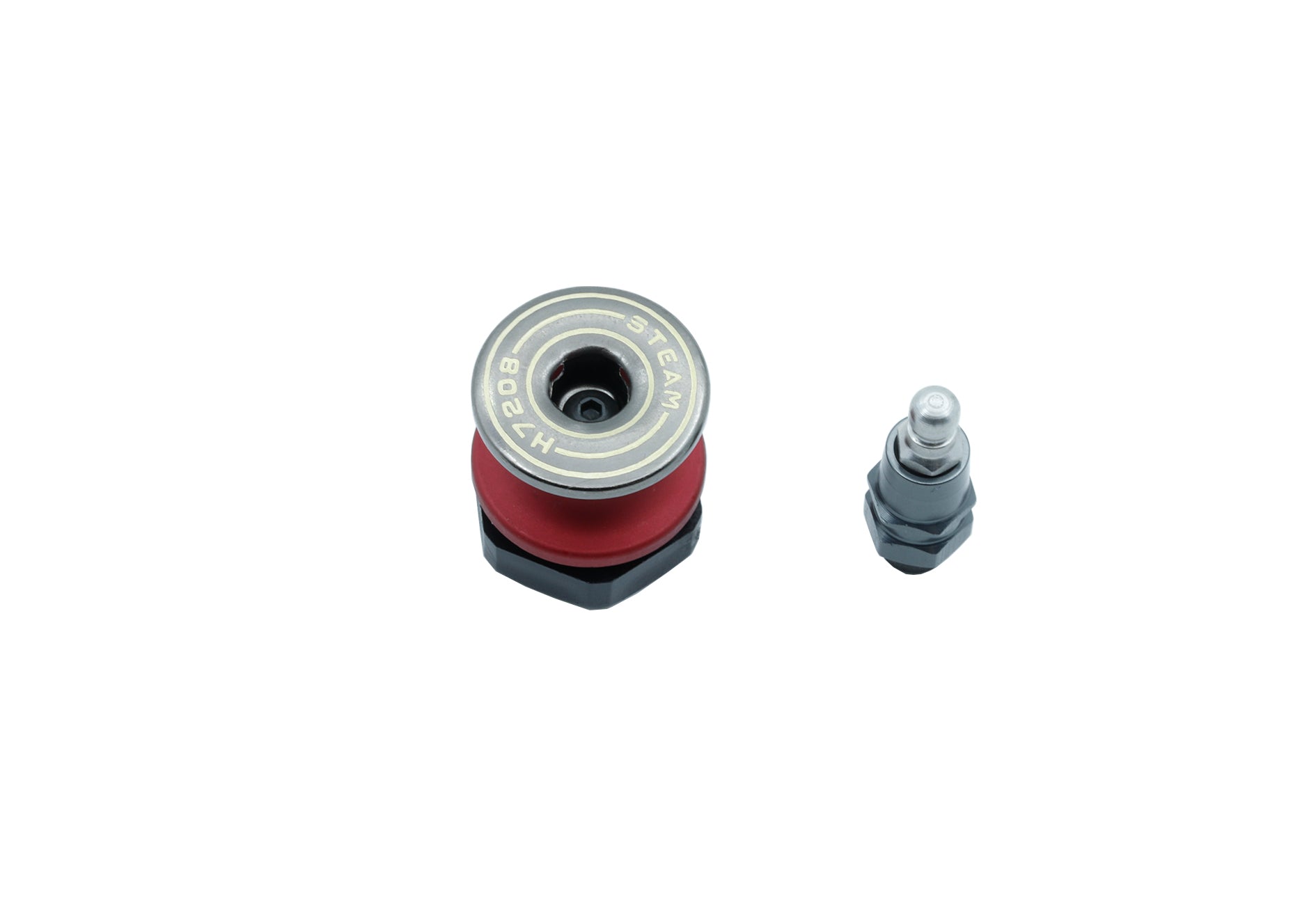

Steam hood quick release kit is suitable for helicopters above 500 level, convenient quick release design, pull ball lock structure. 6061T6 aluminum alloy high-precision CNC machining, installation hole diameter 12MM. The support column adopts a telescopic design, corresponding to different levels of models. If an extra long size is required, the M3 mounting screw can be extended. The entire group of parts is extremely cost-effective.

Related Product Code: 700V2/V3 Integrated Integrated Motor Base H7207 700 V2/V3 upper fuselage left panel H7124L 700 V2/V3 upper fuselage right panel H7124R
700 V2/V3 lower fuselage right panel H7125R



700 V2/V3 Integrated Left Battery Chute H7205L
700 V2/V3 Integrated Right Battery Chute H7205R
700 V1/V2/V3 Tripod Reinforced Carbon Fiber Panel H7127 700 V1/V2/V3 Reinforced Vertical Rear Wing H7126

700 V2/V3 Integrated Chute Panel H7209
700 V2 Hood Fixing Posts H7210 700 V3 Hood Fixing Posts H7211 700 V2/V3 Fuselage Side Panel Connection H7212 Steam Hood Quick Release Group/General Purpose H7208 700V2 Painted Hood H7213



700 V2
/ V3 fuselage side plate screw H7215

Product specifications:
M3.0×14.0mm Allen screw in cup head× 1 H8×12MM aluminum alloy mounting base ×1

H5×16MM stainless steel ball × 1
1MM steel ball× 2
7×12MM steel sleeve ×1
M12 plastic nut× 1 M12 rubber ring× 1 16×
12MM aluminum alloy seat× 1 M2 metal cover plate× 1


M2.5×6.0mm semi-round head inner hex screw ×1
