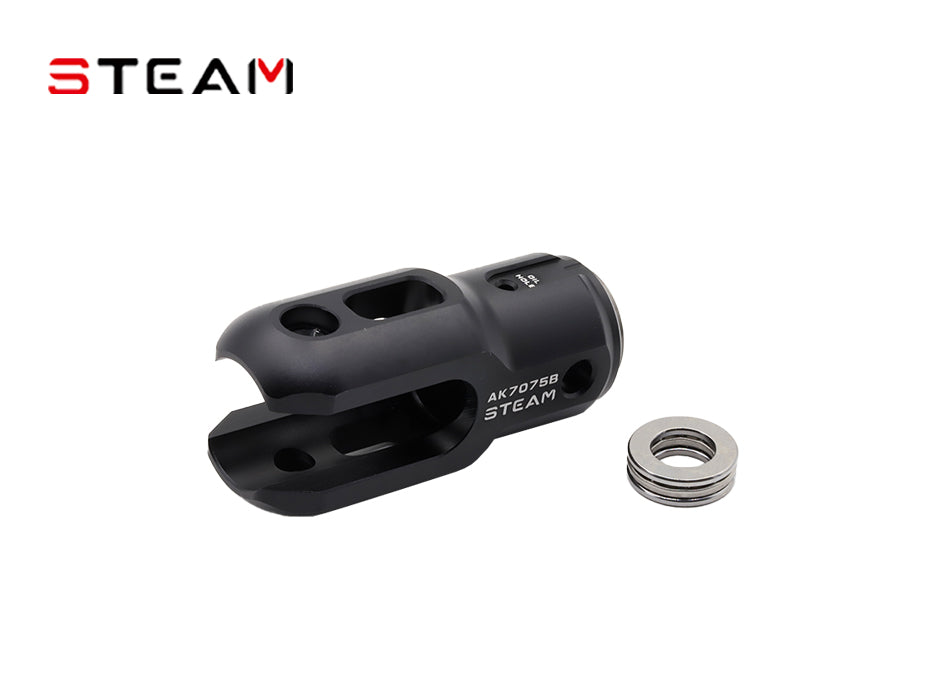

AK700 black stock main blade grip( 1 pcs )

Product Description:

Steam 7075 Main Rotor Award Clamp Set, suitable for Steam Dancer 700V2, V3/AK700 helicopter main rotor clamp set, using 7075 super duralumin alloy full precision CNC machining. The new main rotor clamp adopts the structure of flange bearing and double row angular contact bearing in parallel, which makes the maintenance of the clamp seat more convenient. WITH 0-1MM PADDLE CLAMP GASKET H7203 WITH EMBEDDED DESIGN, IT CAN EASILY INSTALL 12MM AND 14MM ROTORS (NOTE: WHEN USING 14MM ROTORS, THE RED GASKET NEEDS TO BE REMOVED) IS DESIGNED WITH OIL INJECTION HOLES, WHICH IS CONVENIENT FOR BEARING LUBRICATION DURING USE, NO NEED TO DISASSEMBLE THE WHOLE GROUP OF PARTS, AND MULTIPLE MORTISE AND TENON JOINTS STRENGTHEN THE STRUCTURAL DESIGN TO MEET THE STRICT FLIGHT LOAD-BEARING REQUIREMENTS AND EFFECTIVELY IMPROVE FLIGHT STABILITY.

Note: We use a set of EZO imported bearings and an outer diameter Φ18mm plane thrust bearing on this paddle clamp, excluding double row angular contact bearings (purchased separately), so its price will be higher.

Related Product Numbers:

Steam 7075 Main Rotor Jackpot Set/Black AK7075B

Steam 7075 Main Rotor Jackpot Set/Silver AK7075S

700 New Main Rotor Large Propeller Clamp / With Bearing H7221A

700 New Main Rotor Propeller Propeller Clamp H7221B

700 New Double-bore Main Rotor Clamp Arm H7219

700 Double Row Angular Contact Bearing MK7001

0-1MM PADDLE CLAMP SPACER H7203

700 transverse axis positioning rubber ring H7003

700 main rotor transverse axis H7010

Specifications:

7075 Main Rotor Holder ×1(Φ29×Φ30×17×20.5×68mm)

Flange Bearing×1(Φ10.0×Φ19.0×7.0mm)

Flat Thrust Bearing×1(Φ10×Φ18×6.0mm)

Metal gasket×1 (Φ10×Φ14×1mm) ×1
