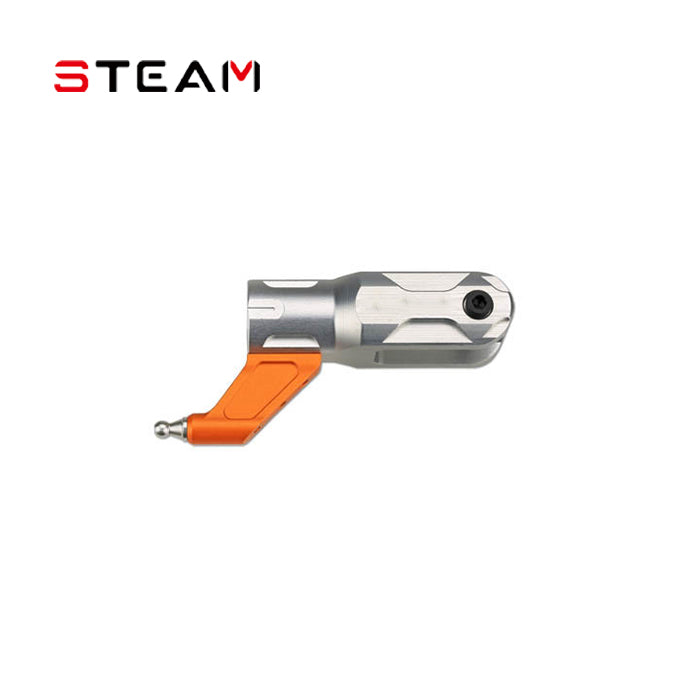

Steam 600 main rotor large propeller clamp set - 7075

Product Description:

Using 7075-T65 super hard aluminum alloy full CNC integrated processing, suitable for Miao 600 helicopter, using split clamp arm, modified thrust bearing mid-mounted, indirectly extending the side swing arm of the bearing, reducing false swing. It can withstand stronger tensile force to adapt to the current mainstream models for large power requirements.

Product Specifications:

600 metal main rotor large propeller clamp × 1 (70×20.5×28.5mm) 42.6G

Main rotor clamp arm × 1 (35×25×8mm) 7.3G

Bearing × 2 (Φ8.0×Φ16×5.0mm) 3.8G

Thrust bearing×1(Φ8.0×Φ16×5.0mm)

M3×6mm step ball 1.3G ×1

M4×28mm cup head hex sleeve screw 3.3G ×1

M4 anti-slip nut 0.7G ×1

M3×8mm half round head screw 0.5G ×2

M11×16x0.3mm copper gasket

The national intellectual property rights have granted Wenzhou Xinyue Science and Technology Innovation Co., Ltd. the patent right of this product, and any unit or individual who manufactures, imitates, uses and sells this product without the authorization and permission of the holder will face patent infringement lawsuits.

       The state intellectual property has awarded XINYUE Technology Innovation co.,ltd the patent. Any units or individual without  the license holder manufacture, copy, use or sell the product will be in patent lawsuit.
