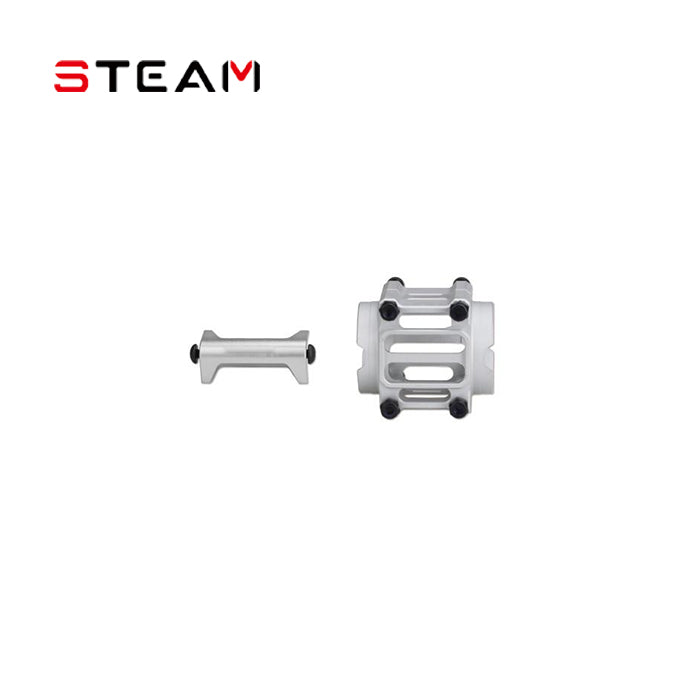

Steam 550 metal tailpipe clamp

Product Description:

It adopts 6061T6 aluminum alloy full CNC integrated machining, which is suitable for Miao 550 helicopter. The T-shaped reinforced structure can effectively lock the Φ22mm tailpipe to meet the strict flight load-bearing requirements and effectively improve flight stability. Upgrade the tail torsional assembly to effectively improve the concentricity of the tail shaft bearing.

Related Product Number:

Φ22mm carbon fiber tailpipe clamp MK5504

Φ22mm metal tailpipe clamp MK5502

Product Specifications:

Metal tailpipe clamp tab × 2 (39.2×34.6×16mm) 7.4g

M3×36mm cup head sleeve screw×4 (M3×36mm) 1.1g

M3 locknut ×4

Metal tail hanging anti-torsion × 1 (31×7.5mm) 2.1g

M3 half-round head screw×2 (M3×6mm).
