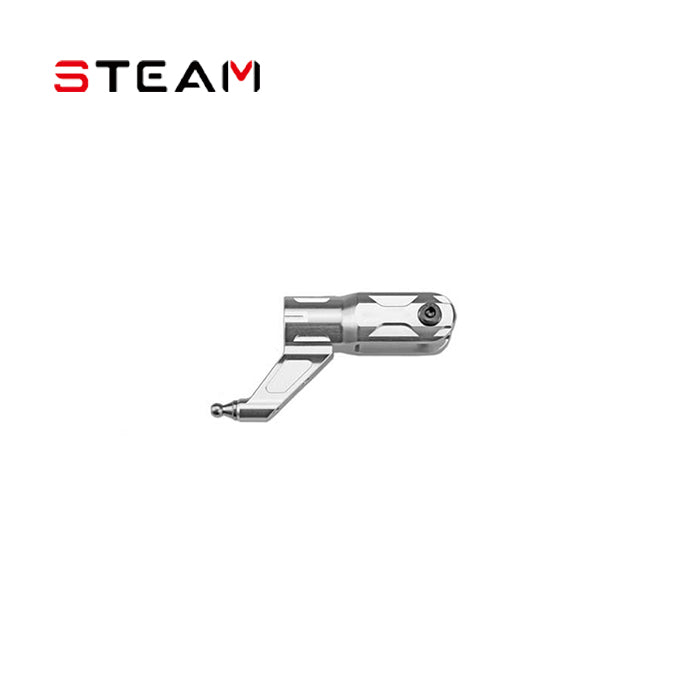

Steam 550 main rotor paddle clamp set - 7075

Product Description:

Using 7075-T65 super hard aluminum alloy full CNC integrated processing, suitable for 550 helicopter, using split clamp arm, modified thrust bearing mid-mounted, indirectly extending the side swing arm of the bearing, reducing false swing. It can withstand stronger tensile force to adapt to the current mainstream models for large power requirements.

Product Specifications:

550 metal main rotor large propeller clamp × 1 (52×22×23.5mm) 21.6g

Main rotor large propeller clamp arm × 1 (31.5×25×8mm) 5.7g

Bearing × 2 (Φ8.0×Φ14×4.0mm) 2.0g

M3×6mm step ball head ×1 1.3g

M4 cup head hexagon sleeve screw ×1(M4×25mm) 3.0g

M4 anti-slip nut ×1 0.7g

M3 cup head step screw ×1(M3×8mm) 0.5g
