Steam 550/600Tail drive main gear

Product Description:

Suitable for Miao 550/600 model, using 6061-T6 aluminum alloy material, high-precision four-axis turning and milling composite 3D integrated molding processing, high precision structural strength.

Product parameters:

Number of teeth: 42T

Tooth shape: XL

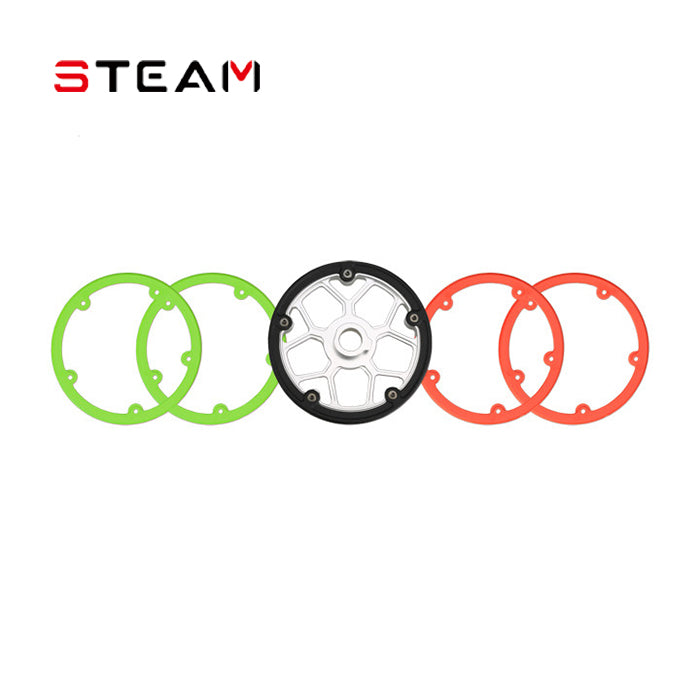

Product Specifications:

Tail drive main chainring× 1 (Φ67×Φ10×14.7mm) 29.3g

Plastic green anti-slip flange × 2 (Φ71.6×Φ53×1.5mm) 1.65g

Plastic red anti-slip flange ×2 (Φ71.6× Φ53×1.5mm) 1.65g

THE HEXAGONAL SCREW IN M3 CUP Head SLEEVE × 1 (M3×16MM).

THE M2 FLAT HEAD Allen SCREW× 10 (M2×3MM)
